F17 Formply 2400x1200x17mm

F17 Formply 2400x1200x17mm

China F17 Formply FSC and BSI BENCHMARK Certificated Quality Standard AS6669:2016 Plywood Formwork 2400x1200x17mm 1800x1200x17mm

Description

CHINA F17 FORMPLY FORMWORK PLYWOOD





Products Description

Foryou Formply F17 2400x1200x17mm formwork plywood is a top grade high quality film faced plywood which used for construction concrete formwork.It is manufactured according to the AS 6669:2016 standard,specifically for the Australia and New Zealand markets.

AAA grade best quality eucalyptus core veneer
AAA grade eucalyptus core veneer

Each layer of our F17 Formply plywood is made of the best quality machine -dried eucalyptus core veneer.

Phenolic A bond glue
A bond phenolic glue

Our F17 Formply plywood is made of customized A bond dynea phenolic glue which has ultra-high bonding strength and can be boiled in boiling water for at least 72 hours without opening. And the formaldehyde emission of our phenolic glue is super E0.

Face/back Dynea phenolic film ,black color or brown color
Grade AAA grade
Size 2400x1200mm,1800x1200mm
Thickness 17mm
Core material Full eucalyptus hardwood core
Glue A bond phenolic waterproof super E0 glue
Moisture content 8%-14%
Density 640kgs-660kgs
Standard AS 6669:2016 Plywood -Formwork
Certificate Benchmark JAS-ANZ, FSC
Phenolic black film
Dynea Phenolic Film

Our F17 Formply plywood is both sides coated with customized best quality dynea phenolic film. It has the characteristics of smooth,wear-resistant and non-absorbent,ensuring that concrete construction has first-class surface quality.

egde painting of f17 formply
Edges painting

The edges of our F17 Formply are painted 3 times using brand paint to ensure good water resistance.



Quality inspection of F17 Formply before shipment



Width/Length tolerance +_1mm


Size and Thickness

We check the length,width and thickness of the Formply sheet in strict accordance with quality standards and contractual agreements.




Thickness tolerance +_0.2mm

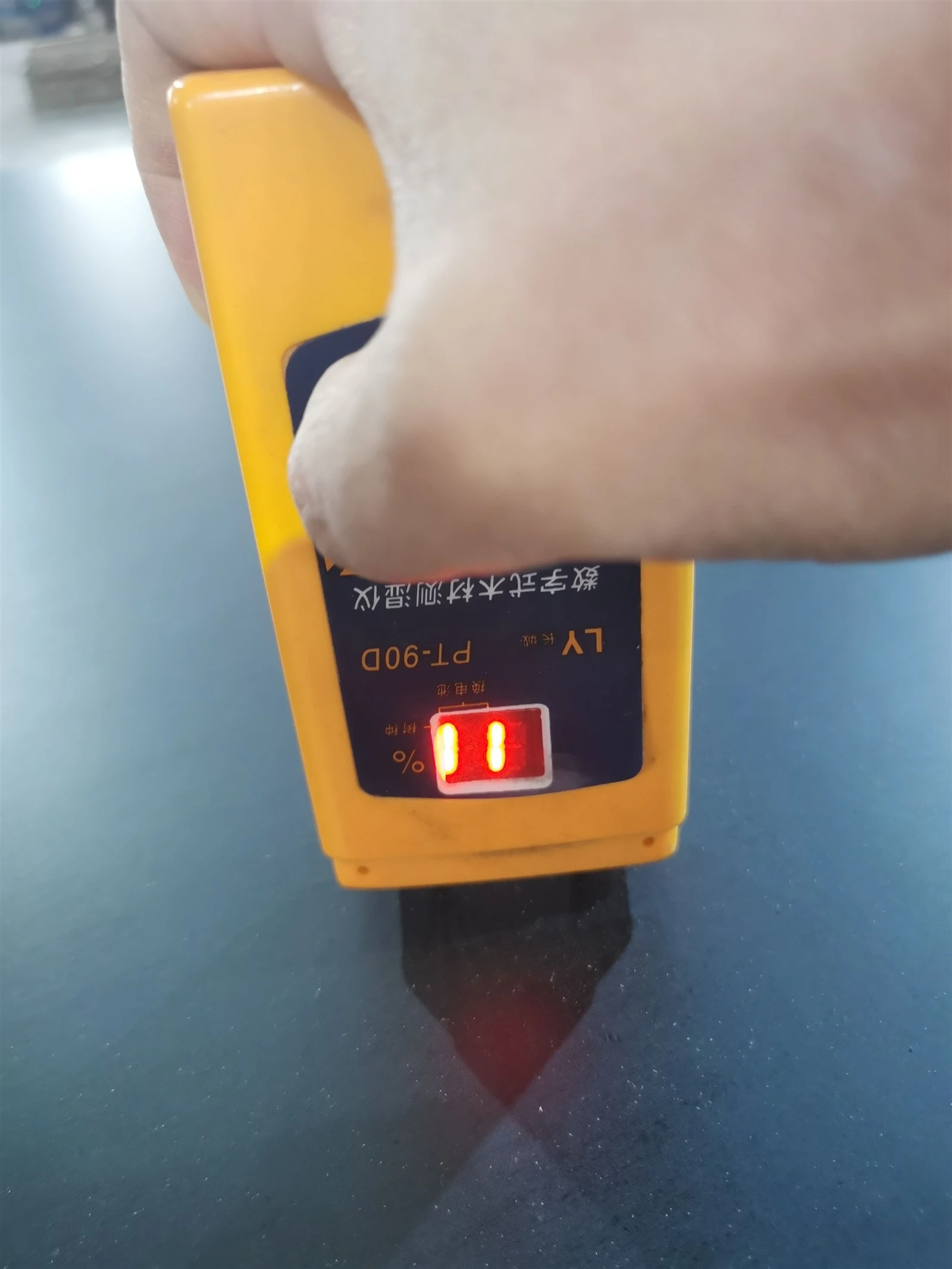

Moisture

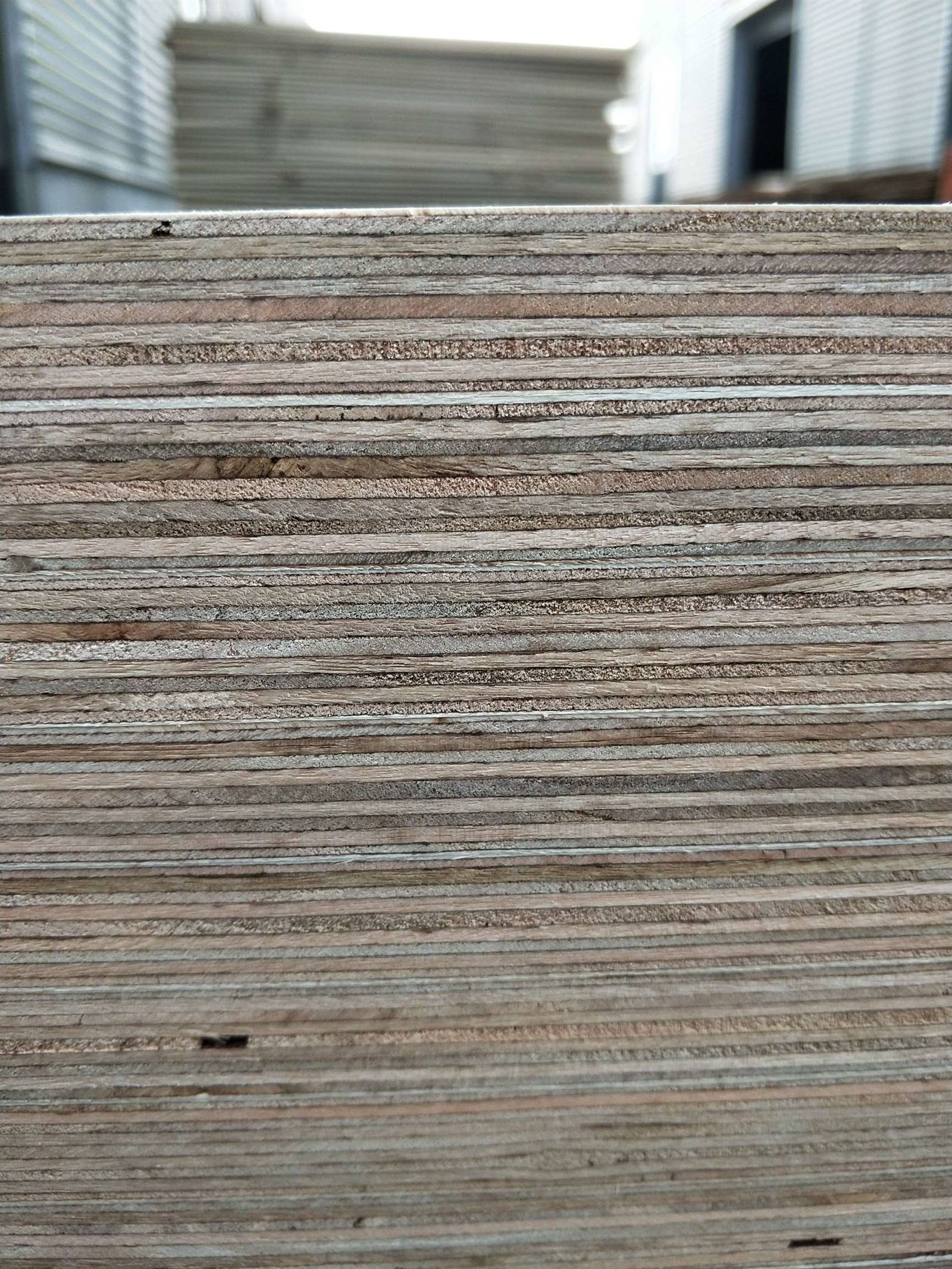

Core


Painting

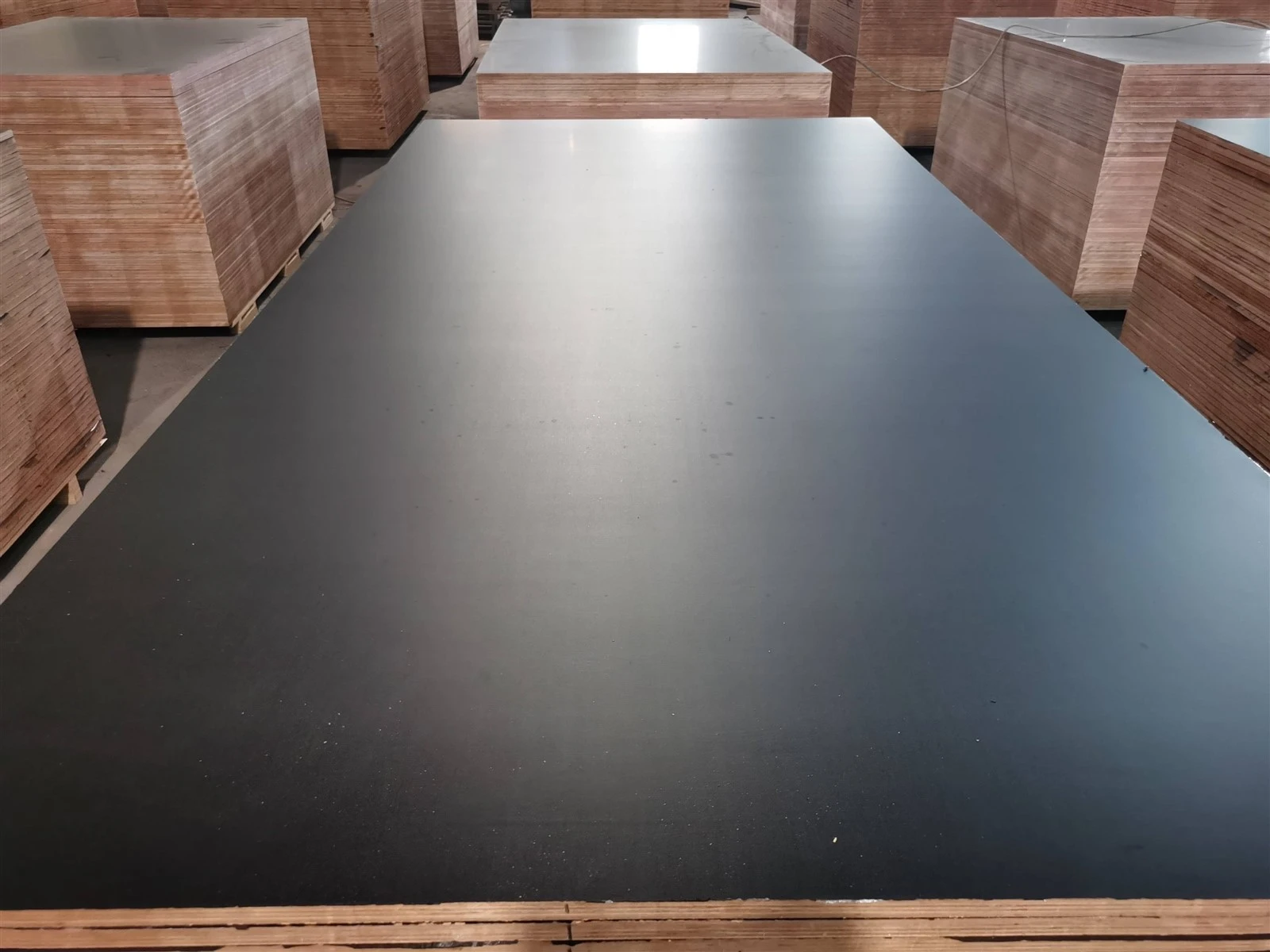

Surfaces





Pictures of Foryou F17 Formply

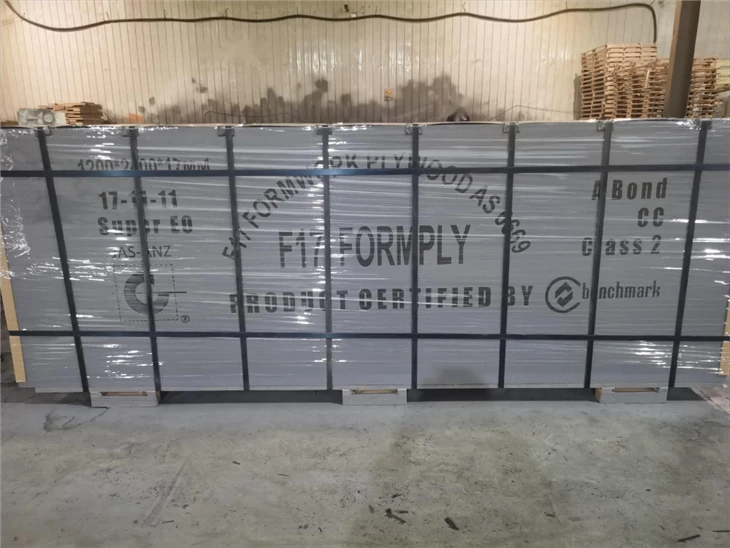

Package of our F17 formply
















Certificates of Foryou F17 Formply



IBS F1700

Benchmark F17 certifcate

IBS F1701

Benchmark F17 certificate

FSC Certificate

FSC certificate
