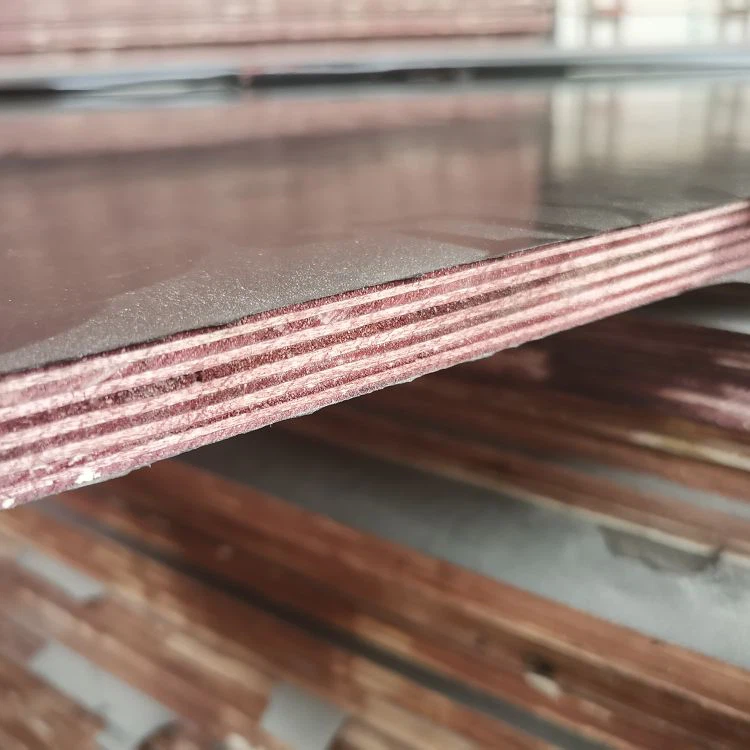

HDO Film Faced Plywood

• Less tele-graphing & grain transfer over the life of the panel
• Superior longevity in painted applications
• Available in lay-ups of 1 or 2-Side Overlay
• Tightly bonded Overlays provide high resistance to edge splitting and slivering
• Available in all standard sizes and thicknesses. 3/8", 1/2", 5/8", 3/4" – (all in 4×8')
• Extra-long panels available by special order in 4×10 or 4×12

Send Inquiry

Description

What is HDO plywood?

HDO plywood is kind of plywood with one side and both sides High Density overlay (HDO) laminated plywood.

It is the more durable of the overlaying panels and is perfect for demanding applications like industrial tanks and concrete forming. All the well-established benefits of plywood's enormous size, high strength, light weight, dimensional stability, and racking resistance are brought to the work by HDO. Without additional finishing, the durable resin overlay withstands harsh exposure. Moreover, it is resistant to abrasion, moisture penetration, and a variety of common chemicals and solvents without degrading.

Specification

Name	HDO Film faced Plywood
Size	12202440mm, 12502500mm or upon request
Thickness	9mm, 12mm, 15mm, 18mm, 21mm, 24mm or upon request
Thickness Tolerance	+/-0.5mm
Face/Back	One side or both sides HDO
Core Board	Poplar, Eucalyptus, Combi, Birch or upon request
Glue	Phenolic, WBP, MR
Grade	Two Times hot press / Thress times hot press
Certification	ISO, CE, FSC, AS6669
Density	500-700kg/m3
Moisture Content	8%~14%
Water Absorption	≤10%
Standard Packing	Inner Packing-Pallet is wrapped with 0.20mm plastic bag Outer Packing-pallets are covered with plywood or carton boxes and strong steel belts
Features	1. Can be reused 2. Waterproof, Wear-resistant, anti-cracking 3. Environmentally friendly
